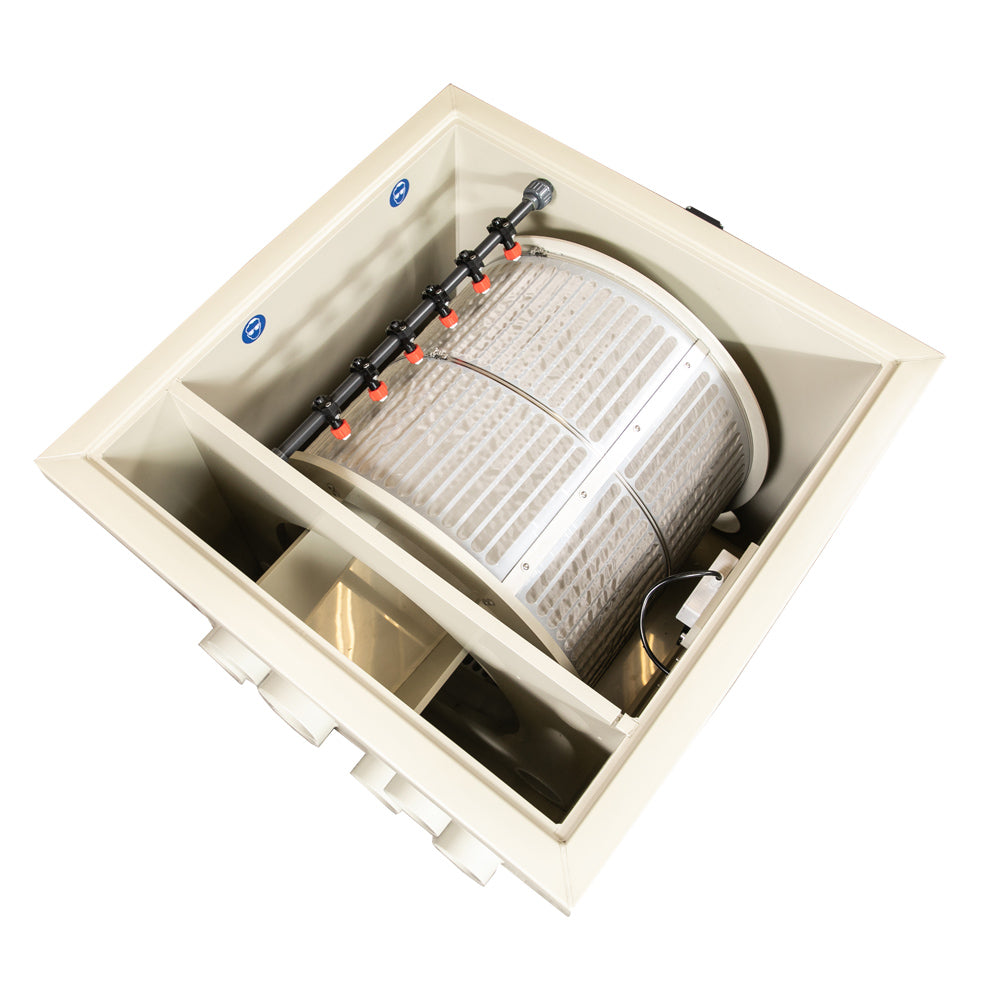

Specifications PP-65
MAX FLOW 17000GPH
Pond Suggested 34000GAL
Standard flow is 65 m3 / h
Gravity / Airlift / Pump fed
Material:
PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal
Specifications:
6 x 110 mm inputs
6 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 60 x 50 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable
All components assembled in modules and therefore quickly interchangeable
